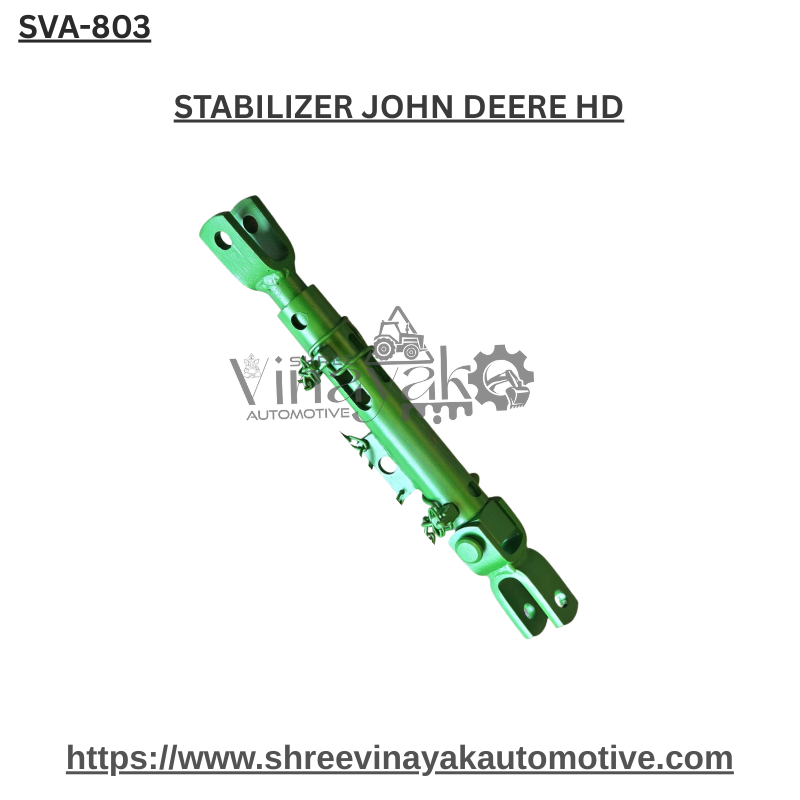

STABILIZER ASSY JOHNDEER H/D

The Heavy-Duty Stabilizer Assembly for John Deere tractors is engineered as a robust solution to control the lateral sway of implements mounted on the three-point hitch. Constructed from reinforced steel, this adjustable linkage spans the rear lower lift arms and connects securely via ball or fork ends—delivering enhanced stability and control when operating heavy or unevenly loaded equipment.

With a typical adjustable length range of approximately 390 mm to 515 mm, thread sizes around M30×3.5, and pin diameters near 19 mm, this stabilizer fits a wide array of John Deere models from the 6010/6020/6030/6020 series and beyond—including models like the 6210, 6310, 6420, 6620, and 6920 . On smaller compact utility tractors (e.g., 4044M, 4052M), equivalent stabilizers adjust between 14″ to 19″ and use standard Category I ends

This assembly is invaluable for operators working on slopes, maintaining road edges, or managing heavy implements—minimizing accidents, preventing equipment drift, and ensuring precise implement alignment. Users often prefer solid stabilizer bars over simple chains or tension straps, citing superior durability and consistent performance
