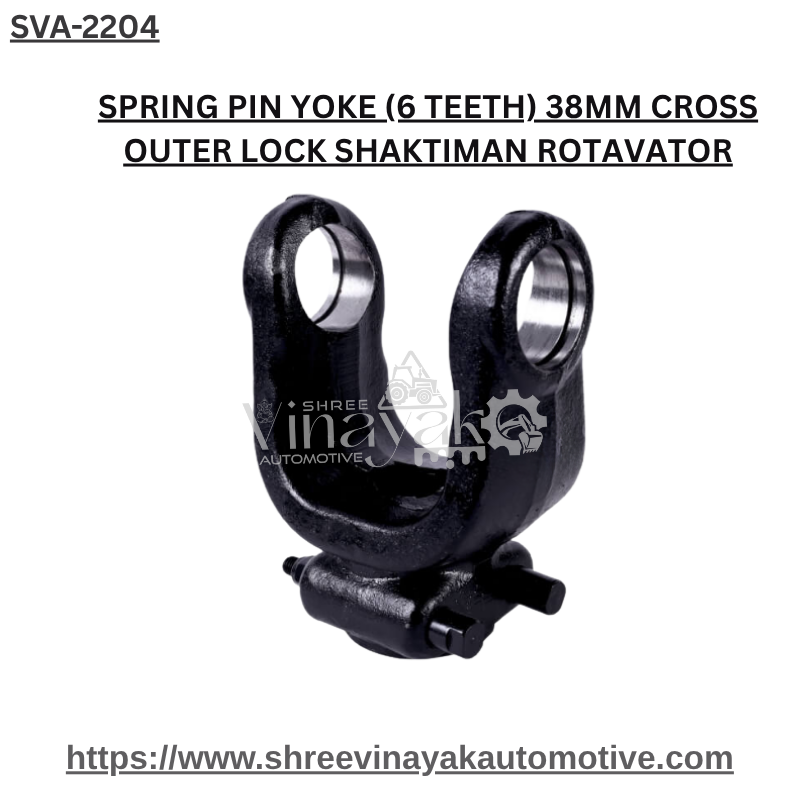

SPRING PIN YOKE (6 TEETH) 38MM CROSS OUTER LOCK SHAKTIMAN ROTAVATOR

This Spring Pin Yoke is designed specifically for the Shaktiman rotavator models that use a 38 mm cross (1210 cross) and outer-lock coupling system. According to the parts catalogue, the item code UJ-0073 corresponds to “SPRING PIN YOKE (6 TEETH) 38MM CROSS OUTER LOCK SHAKTIMAN” with price around ₹990. Scribd

Key features include:

• 6 teeth configuration for correct spline engagement with drive shaft.

• Outer-lock type, meaning the locking mechanism is external rather than internal—fits the specified coupling style.

• 38 mm cross size (also referenced as “38MM – 1210 CROSS”). Scribd+2Scribd+2

• Built to handle the power transmission from the tractor PTO through the rotavator gear box while also providing a fail-safe (spring pin) mechanism: in case of excessive load or obstruction the spring pin arrangement will shear or disengage before the more expensive gearbox or drive shaft components are damaged.

• Manufactured (or listed) through recognised catalogues for Shaktiman parts, and there are aftermarket heavy-duty variants (for example a heavy-duty “SPRING YOKE 6 TEETH OUTER LOCK SHAKTIMAN 38MM CROSS” listing).

Installation tips & compatibility notes:

• Ensure the mating drive shaft/cross is indeed 38 mm and uses the outer-lock design; mismatching inner vs outer lock will cause fitment issues.

• Confirm the spline count (6 teeth) matches your existing yoke or shaft coupling.

• When replacing, check for wear on the mating hub, keyways, pins and ensure proper lubrication and torqueing of fasteners.

• If used in heavy duty/cobbled field conditions, consider also inspecting related parts (hub, yoke assembly, drive shaft) for fatigue or damage.

• Keep a spare spring-pin yoke on hand: because this part acts as a sacrificial item, it might need replacement more often under tough conditions.
