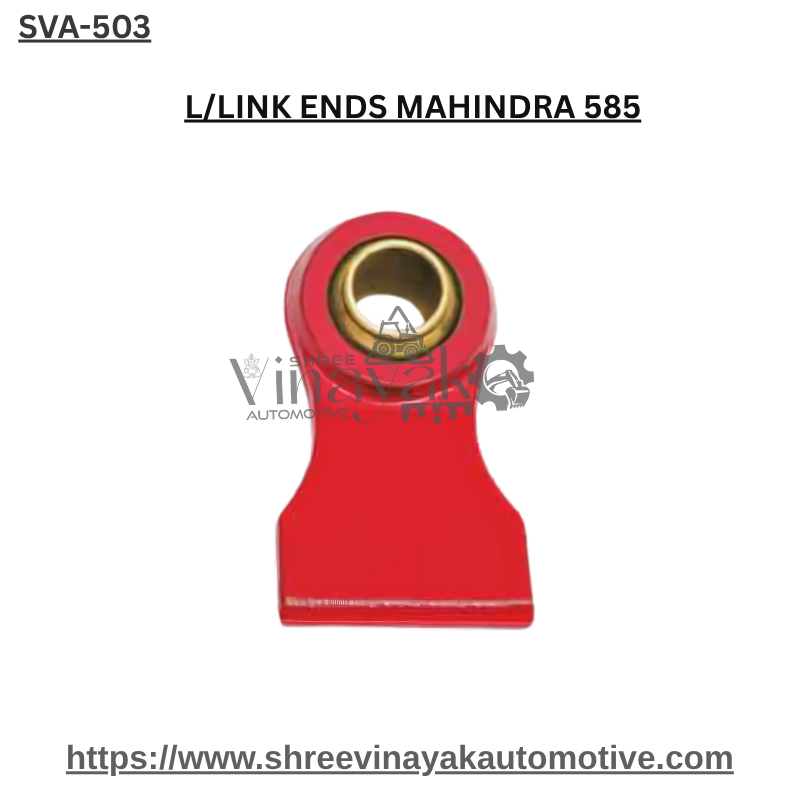

L/LINK ENDS MAHINDRA 585

The lower link ends for Mahindra 585 tractors are vital components of the 3‑point hitch system. They fit at the ends of the lower lift arms (lower links), enabling implements (ploughs, cultivators, etc.) to be fastened via a pin. These ends transfer the loads (lifting, pulling, torque) between the implement and the hydraulic lift arms.

Key Aspects & Design Considerations

• Linkage Category & Load
   Mahindra 585 uses Category II 3‑point linkage with external check chains.
   Lower link ends must be sized & designed for that category and the loads involved (lifting capacity of the tractor, stresses from field use).

• Material & Durability
   Made of robust steel (often mild or structural steel) to bear high stresses.
   They often have surface treatments (coatings, paint, plating) to resist corrosion and wear.

• Types (Slip vs Weld‑On)
   Some link ends are slip ends (replaceable inserts) and some are weld‑on ends (permanently fixed).
   Slip ends allow replacement when the bearing hole or tail is worn, without replacing the entire lower link.

• Dimensional Fit & Tolerances
   The inner width (slot into lower arm), thickness, tail length, hole diameter, and alignment must precisely match the lower link geometry.
   The pin hole must be tight (minimal play) to reduce shock loads and avoid premature wear.

• Wear, Maintenance & Replacement
   Check the pin hole for ovalization or elongation periodically.
   Replace worn ends before damage spreads to the link arms.
   Proper welding (if weld‑on) and alignment are critical to avoid misalignment or fatigue.
