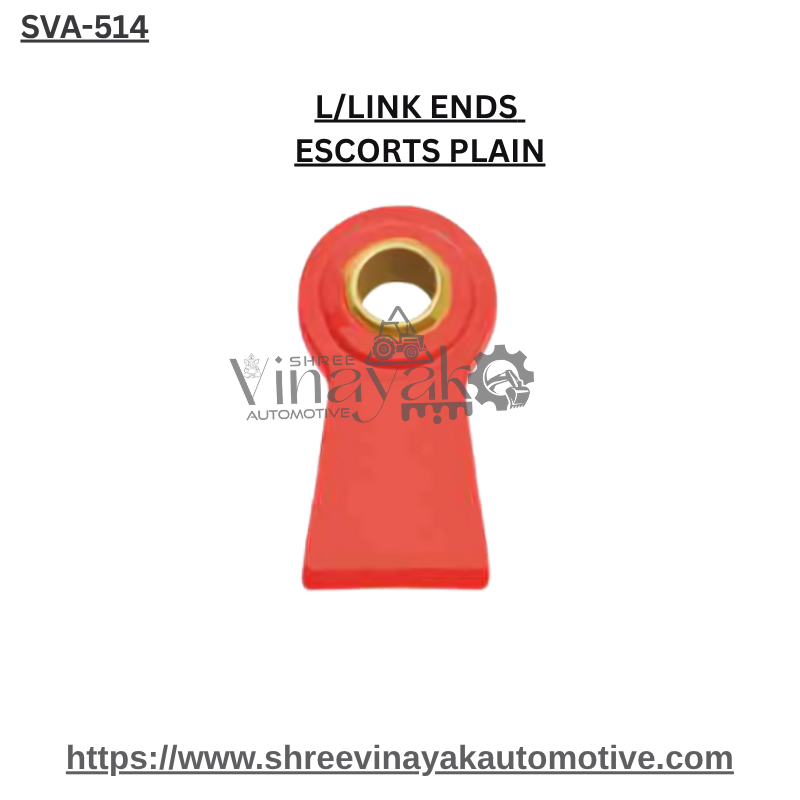

L/LINK ENDS ESCORTS PLAIN

The plain lower link end for Escort tractors is a fundamental part of the 3‑point hitch system. It is mounted at the distal end of the tractor’s lower lift arm and serves as the connection point between the arm and the implement. Unlike more complex link ends (hook ends, quick‑release ends, ball ends), the “plain” version is minimalistic in design, often consisting of a simple mounting bore or flat surface, designed to be robust, durable, and reliable.

Key Characteristics & Considerations

• Simplicity: The “plain” end means there are no additional locking, swivel, or hook mechanisms built into the end — it relies on simplicity and strength.

• Material & Strength: Made from mild steel or structural steel, with adequate thickness and reinforcement to withstand agricultural loads. Surface treatment (painting/coating) may be used to resist corrosion.

• Bore / Mounting Interface: The end usually has a pin hole / bore dimension that matches the implement coupling pin size, or a flat plate with mounting holes. Matching that bore size precisely is critical to avoid play or stress concentration.

• Fit to Link Arm: The tail or “slip-in” portion (if any) must correspond to the internal width, thickness, and alignment of the lower arm. Proper fit ensures load is correctly distributed along the arm.

• Load Transfer: Transfers vertical lift forces, torque, and lateral stresses from the implement into the tractor linkage system. Must maintain rigidity under varying working conditions.

• Maintenance & Wear: The bore can wear or elongate over time. The edges may develop burrs or cracks. Regular inspection and replacement is essential.

• Compatibility / Standardization: Must conform to the tractor’s category (Cat I, Cat II, etc.), pin size, and geometry of the linkage. Escort tractor linkage parts are also marketed under “Ursus Escorts Linkage” systems.
