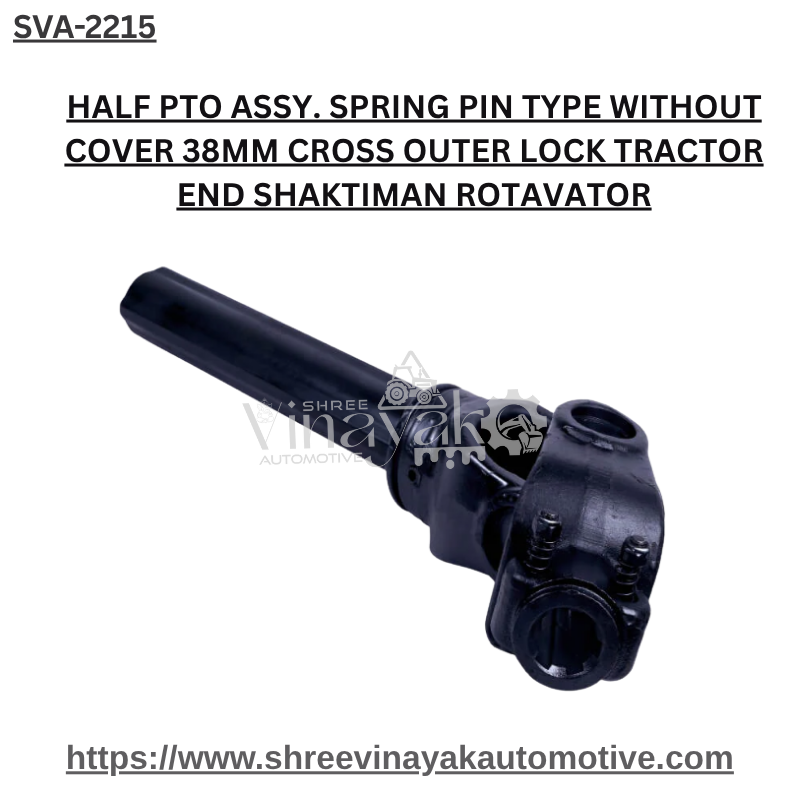

HALF PTO ASSY. SPRING PIN TYPE WITHOUT COVER 38MM CROSS OUTER LOCK TRACTOR END SHAKTIMAN ROTAVATOR

This is a half PTO (Power Take‑Off) assembly designed for the tractor end of a Shaktiman rotavator drive train, specified for a 38 mm cross (1210 cross) shaft with an outer‑lock style coupling. The “spring‑pin type” indicates that the assembly uses a spring‑pin as a sacrificial or overload‑protection mechanism: under an overload or obstruction, the pin will disengage or shear to protect more expensive drivetrain components ahead of it. This version is delivered without the protective cover/guard, so it’s intended for use where the cover is already present or a separate guarding arrangement is in place.

Key details include:

• Size: 38 mm cross shaft.

• Coupling type: Outer lock (i.e., the locking mechanism is external rather than internal).

• End application: Tractor end (not the implement/rotavator end).

• Type: Spring‑pin safety type (not shearing bolt type).

• Guarding: Cover/guard not included in this version — requires separate guarding.

• Compatible with Shaktiman rotavators that use this coupling standard. (Catalog listing “UJ‑86” corresponds to this part)

Fitment & installation notes:

• Ensure your PTO shaft/cross size is indeed 38 mm and uses outer‑lock type. Mismatch in size or coupling locking style will lead to incorrect fitment or failure.

• Inspect the mating tractor end assembly (shaft, splines, coupling hub) for wear, play or damage before installing the new half PTO assembly.

• During installation: align the couplings correctly, engage the spring‑pin mechanism properly, and secure all fasteners to specification.

• Because this unit comes without a protective cover, make sure you provide or install an appropriate guard to protect the PTO assembly from debris and to ensure operator safety and compliance with field safety norms.

• After installation: run a test at low speed under load and check for any unusual vibration, play or noise — these could indicate misalignment or improper installation.
